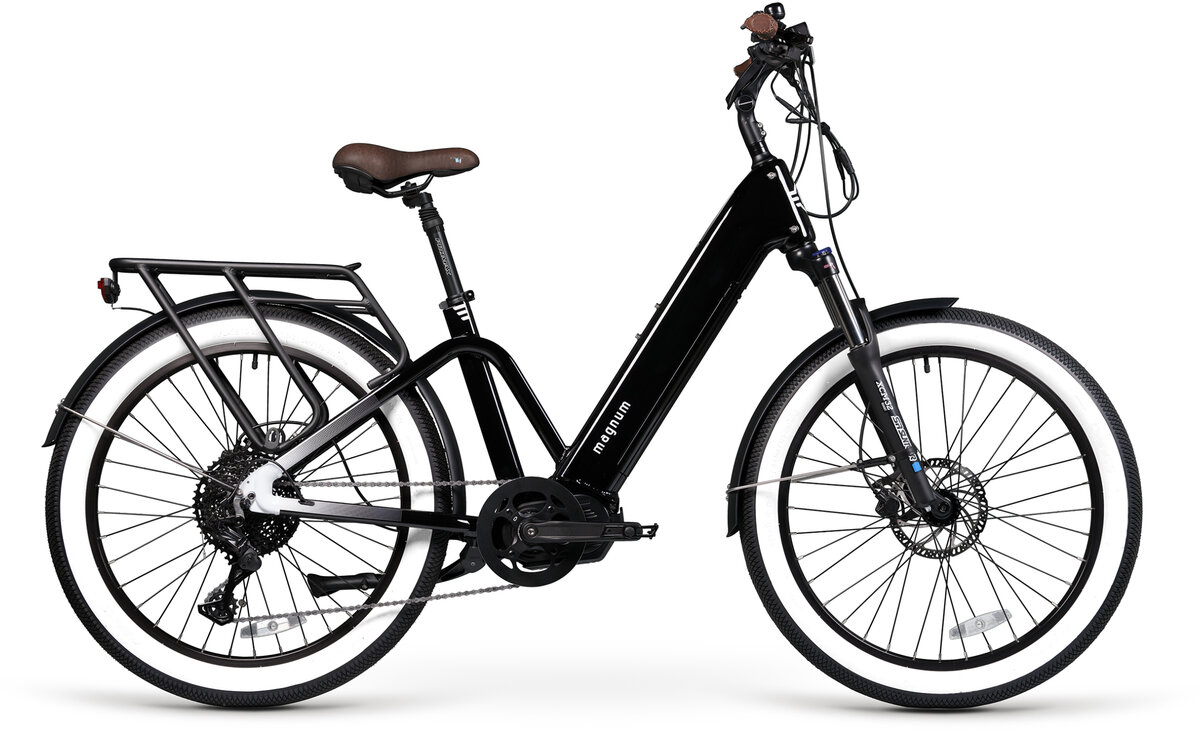

Magnum Bikes Pilot
Details
With our new Ananda mid-drive system, the Pilot feels natural and balanced while cruising the boardwalk or on evening neighborhood rides with the family. An integrated but removable battery hides in the frame, and the thumb throttle means you only have to pedal on your terms. Available in a variety of eye-catching colors, the Pilot will get you there in comfort and look good doing it.
THE BATTERY.
The Pilot's integrated and color-matched battery has a 15Ah capacity, and the ability to take a rider up to 50 miles on a single charge.
POWER MEETS BALANCE
- Throttle-controlled mid-drive motor
- Equipped with a powerful 500W mid-drive motor, this e-bike has natural power delivery, increased water resistance, and unique throttle control. It also features a derailleur clutch for rough terrain and a quick-detach rear wheel for easy maintenance.
*Recommended Minimum Rider Height: 5'0"
| SIZE | One Size |
|---|---|
| Seat Tube (mm) | 440 |
| Reach (mm) | 426 |
| Stand Over Height (mm) | 490 |
| Virtual Top Tube Length (mm) | 590 |
| Min Saddle Height (mm) | 580 |
| Max Saddle Height (mm) | 740 |
| Width (mm) | 690 |
| Wheelbase (mm) | 1220 |
| Length (mm) | 1930 |
Specs
| Frame | Aluminum Alloy |
|---|---|
| Fork | Suntour XCM32 Boost |
| Tires | 26 x 3.0 |
| Crankset | Aluminum Alloy 170mm |
| Shifters | Microshift Advent 10-Speed |
| Rear Derailleur | Microshift Advent 10-Speed |
| Cassette/Freewheel | Microshift Advent 10-Speed |
| Chain | KMC 10-Speed |
| Brakes | Tektro Hydraulic |
| Tape/Grips | Brown Faux Leather |
| Stem | Tool-free Adjustable |
| Saddle | Selle Royal Freeway |
| Pedals | Wellgo |
| Accessories & Extras | Front and Rear Fenders Included |
| Motor | Ananda Mid-Drive Motor 500 Watts |
| Battery | 48 Volts 15Ah, 720Wh |
| Controller/Display | Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Black / One Size | 745808933760 | 210000009458 |
